These wings were designed to deliver glide, precision, and efficiency while maintaining a high average speed — a key requirement of modern downwind riding.
We integrated tubercules along the leading edge to achieve a more progressive stall and improved ability to lock into bumps, even when the sea becomes irregular.
The mini winglets at the wingtips help stabilize airflow, reduce vortices, and increase directional stability.
A profile designed for ultra-efficient pumping
A core element of the ULTRA range lies in its profile design, optimized to reduce the energy required for pumping.
The goal is not explosive pumping, but rather a smooth, efficient pumping style that maintains average speed with minimal effort.
An effective, fluid, low-energy pumping motion that allows riders to connect bump after bump while expending as little energy as possible.
HA ULTRA + U-GLIDE: the downwind signature
A setup designed to glide far, sustain average speed, connect efficiently, and follow the most direct line — with minimal yet effective pumping.
Technical information

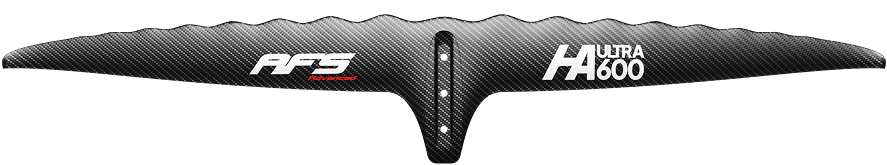

Ha Ultra 600
| Surface | 600 cm2 |
|---|---|
| span | 980 mm |
| Aspect ratio | 16 |
| Chord max. | 84 mm |
| Thickness max. | 10.8 mm |
| Construction | UHM and HM Carbon |

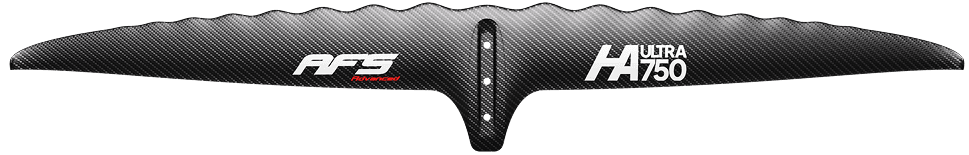

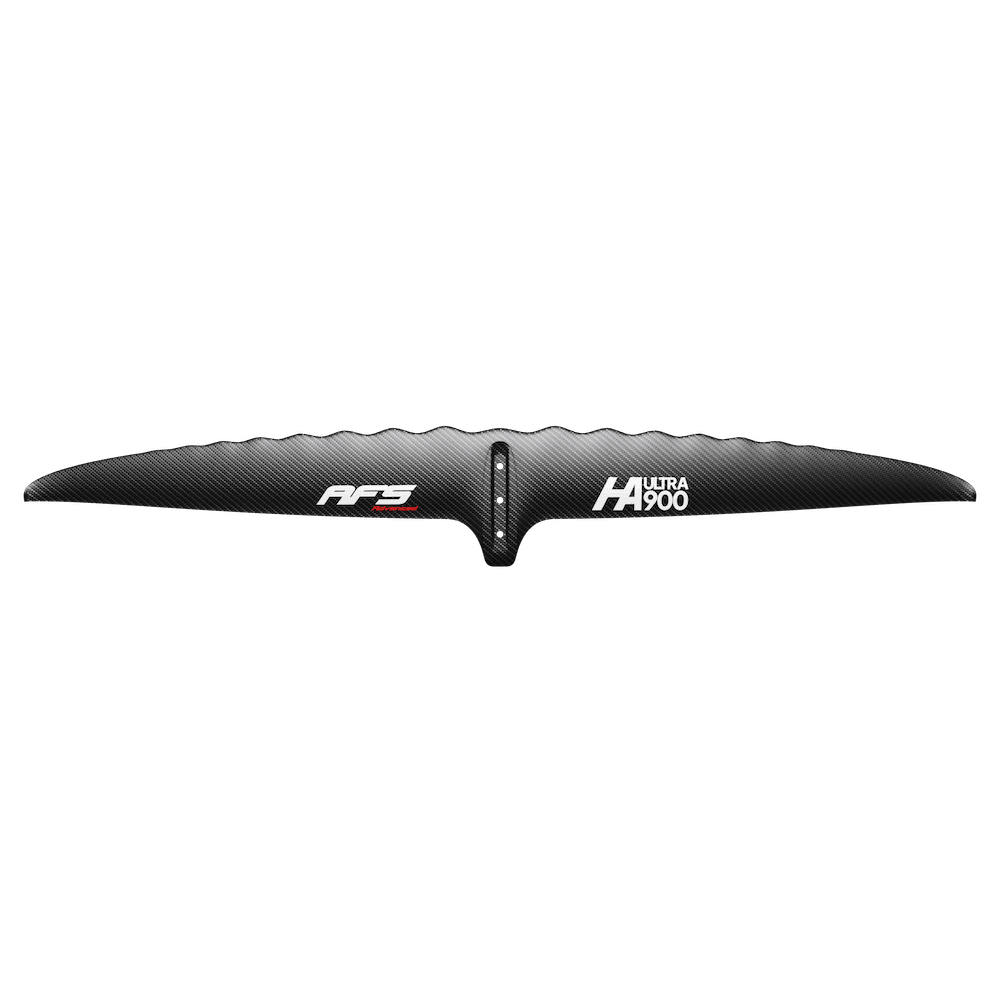

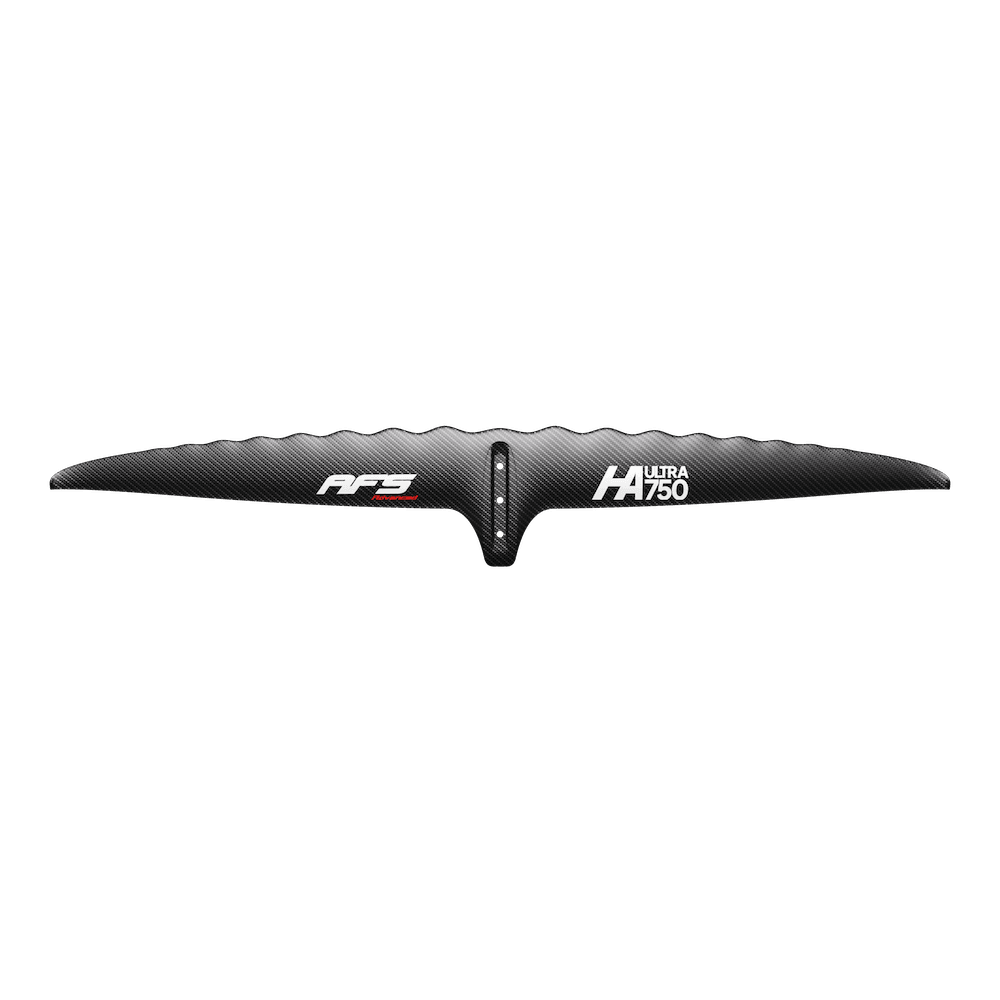

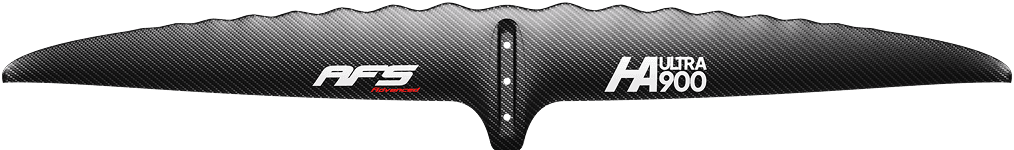

Front wing — Ultra Front WingSee the product
 600 |  750 |  900 | |
|---|---|---|---|
| Area (cm²) | 600 | 750 | 900 |
| Wingspan (mm) | 980 | 1060 | 1120 |
| Aspect ratio | 16 | 15 | 14 |
| Max chord (mm) | 84 | 95 | 106 |
| Max thickness (mm) | 10.8 | 12.3 | 13.9 |
| Screw size | M8x20mm Torx40 | M8x20mm Torx40 | M8x20mm Torx40 |
| Weight (g) | 600 | 700 | 1000 |
| Construction | UHM Carbone + HM Carbone | UHM Carbone + HM Carbone | UHM Carbone + HM Carbone |
- Area (cm²)
- 600
- Wingspan (mm)
- 980
- Aspect ratio
- 16
- Max chord (mm)
- 84
- Max thickness (mm)
- 10.8
- Screw size
- M8x20mm Torx40
- Weight (g)
- 600
- Construction
- UHM Carbone + HM Carbone
- Area (cm²)
- 750
- Wingspan (mm)
- 1060
- Aspect ratio
- 15
- Max chord (mm)
- 95
- Max thickness (mm)
- 12.3
- Screw size
- M8x20mm Torx40
- Weight (g)
- 700
- Construction
- UHM Carbone + HM Carbone
- Area (cm²)
- 900
- Wingspan (mm)
- 1120
- Aspect ratio
- 14
- Max chord (mm)
- 106
- Max thickness (mm)
- 13.9
- Screw size
- M8x20mm Torx40
- Weight (g)
- 1000
- Construction
- UHM Carbone + HM Carbone
Mast — UHM Skinny Carbon MastSee the product
 80 | |
|---|---|
| Height (cm) | 80 |
| Thickness (mm) | 13.2 |
| Chord (mm) | 105 |
| Weight (g) | 1900 |
| Construction | UHM Carbon / Monolithic |
- Height (cm)
- 80
- Thickness (mm)
- 13.2
- Chord (mm)
- 105
- Weight (g)
- 1900
- Construction
- UHM Carbon / Monolithic
Fuselage — Fuselage TitaneSee the product
 Fuselink Titane | |
|---|---|
| Length (mm) | 650 |
| Screw spacing | M8x16mm Torx 40 |
| Weight (g) | 1080 |
| Construction | Titanium |
- Length (mm)
- 650
- Screw spacing
- M8x16mm Torx 40
- Weight (g)
- 1080
- Construction
- Titanium
Stabilizer — U Glide StabilizerSee the product
 39 |  41 |  43 | |
|---|---|---|---|
| Area (cm²) | 113 | 123 | 133 |
| Wingspan (mm) | 390 | 410 | 430 |
| Aspect ratio | 13.9 | 13.8 | 13.7 |
| Max chord (mm) | 44 | 46 | 48.3 |
| Max thickness (mm) | 4.5 | 5 | 5 |
| Screw size | 12mm Torx 30 | 12mm Torx 30 | 12mm Torx 30 |
| Weight (g) | 100 | 100 | 100 |
| Construction | HM Carbon | HM Carbon | HM Carbon |
- Area (cm²)
- 113
- Wingspan (mm)
- 390
- Aspect ratio
- 13.9
- Max chord (mm)
- 44
- Max thickness (mm)
- 4.5
- Screw size
- 12mm Torx 30
- Weight (g)
- 100
- Construction
- HM Carbon
- Area (cm²)
- 123
- Wingspan (mm)
- 410
- Aspect ratio
- 13.8
- Max chord (mm)
- 46
- Max thickness (mm)
- 5
- Screw size
- 12mm Torx 30
- Weight (g)
- 100
- Construction
- HM Carbon
- Area (cm²)
- 133
- Wingspan (mm)
- 430
- Aspect ratio
- 13.7
- Max chord (mm)
- 48.3
- Max thickness (mm)
- 5
- Screw size
- 12mm Torx 30
- Weight (g)
- 100
- Construction
- HM Carbon
Ultra Fuselink Foil Full Set
- Warranty : All our products come with a 2-year warranty.
- After-sales service : Returns within 14 days
AFS Product Expert
Need help choosing your equipment?
We are here to provide you with comprehensive answers and advice to help you make the right choice.
Make an appointment by telephone
Need advice?
An AFS expert helps you pick the right size and setup.
Quick replies, Monday to Friday.
These setups are our recommendations. Have another combination in mind? Build your foil piece by piece, at the same price:
- Front wing : Ultra Front Wing
- Mast : UHM Skinny Carbon Mast
- Fuselage : Fuselage Titane
- Stabilizer : U Glide Stabilizer
In the box
12 items- 1 Ultra Fuselink Foil Full SetThe size you choose above.
- 1 Wing coverProtects the leading edge in transport and storage.
- 1 Mast coverProtects the profile in transport.
- 1 Fuselage coverProtects the fuselage in transit.
- 1 Stabilizer coverProtects the stabilizer in transit.
- 1 Travel caseThe whole foil fits inside, wings protected.
- 4 Mounting screws · front wing — M8×20 stainless, Torx 40Ready to fit.
- 1 Baseplate connection kit · 4 × M8×30 screws + 4 × M8 nutsAttaches the mast to the board’s baseplate.
- 3 Mast / fuselage screws · M8×45Attach the fuselage to the mast.
- 3 Mounting screws · stabilizer — M6×12Ready to fit.
- 4 Mounting screws · fuselage — M8×16, Torx 40Ready to fit.
- 1 Assembly screwdriverTo assemble the foil.
