The ultra fun foil for initiation and progression in wingfoil
The Flyer foil is designed to accompany you on your first wingfoil flights and beyond.
Its smooth takeoff, stability, control, and predictability make it the ideal foil to easily learn how to fly, go upwind, perform your first manoeuvres, and even venture into small waves under a wing.
Its great versatility allows the Flyer to accompany you throughout your progression, without the need to change foils.
Enjoy long-lasting reliability and performance with this exceptionally forgiving and efficient foil.
Early take off
Designed for early takeoff, the Flyer range provides immediate, intuitive, and progressive takeoff previously associated with far larger foils.
The Flyer foil offers high levels of stability and comfort to wingfoil beginners and progressive riders who then can be free to enjoy the wider foiling sensations.
The surface area provides great tolerance and stability.
Carbon sandwich construction
It offers the best weight/strength/stiffness ratio. Advanced AFS carbon foil construction has a lightweight and durable characteristic.
Having a lighter, stiffer foil set allows for quicker takeoff and more enjoyable, efficient, responsive flight. A carbon mast is impossible to permanently bend.
As a comparative example, a carbon foil can be up to half the weight of aluminium, sometimes saving approx 3kg in foil set weight!
Easy care
Durability adds to the numerous advantages of a carbon foil. Maintenance of a carbon foil is so simple, simply rinse with water to keep connections sand free and enjoy zero corrosion.
Plug And Play
The goal is to minimise assembly time to maximise your time on the water. Assembly is securely achieved, simply using minimal screws
3 for
2 for
2 for
Storage, you can simply leave your foil assembled less the mast, without the risk of corrosion thanks to the full carbon construction.
The Flyer Foil Set also enjoys forwards looking compatibility throughout the AFS Foil range.
Front wing — Flyer Front WingSee the product
 1500 | 1800 | |
|---|---|---|
| Area (cm²) | 1430 | 1735 |
| Wingspan (mm) | 955 | 1050 |
| Aspect ratio | 6.3 | 6.3 |
| Max chord (mm) | 185 | 205 |
| Max thickness (mm) | 20 | 22 |
| Screw size | M8x20mm Torx40 | M8x20mm Torx40 |
| Weight (g) | 900 | 1000 |
| Construction | HR Carbon / Corecell Core | HR Carbon / Corecell Core |
- Area (cm²)
- 1430
- Wingspan (mm)
- 955
- Aspect ratio
- 6.3
- Max chord (mm)
- 185
- Max thickness (mm)
- 20
- Screw size
- M8x20mm Torx40
- Weight (g)
- 900
- Construction
- HR Carbon / Corecell Core
- Area (cm²)
- 1735
- Wingspan (mm)
- 1050
- Aspect ratio
- 6.3
- Max chord (mm)
- 205
- Max thickness (mm)
- 22
- Screw size
- M8x20mm Torx40
- Weight (g)
- 1000
- Construction
- HR Carbon / Corecell Core
Mast — HR carbon mastSee the product
 85 cm | |
|---|---|
| Height (cm) | 85 |
| Thickness (mm) | 16 |
| Chord (mm) | 135 |
| Weight (g) | 1700 |
| Construction | HR Carbon / Corecell Core |
- Height (cm)
- 85
- Thickness (mm)
- 16
- Chord (mm)
- 135
- Weight (g)
- 1700
- Construction
- HR Carbon / Corecell Core

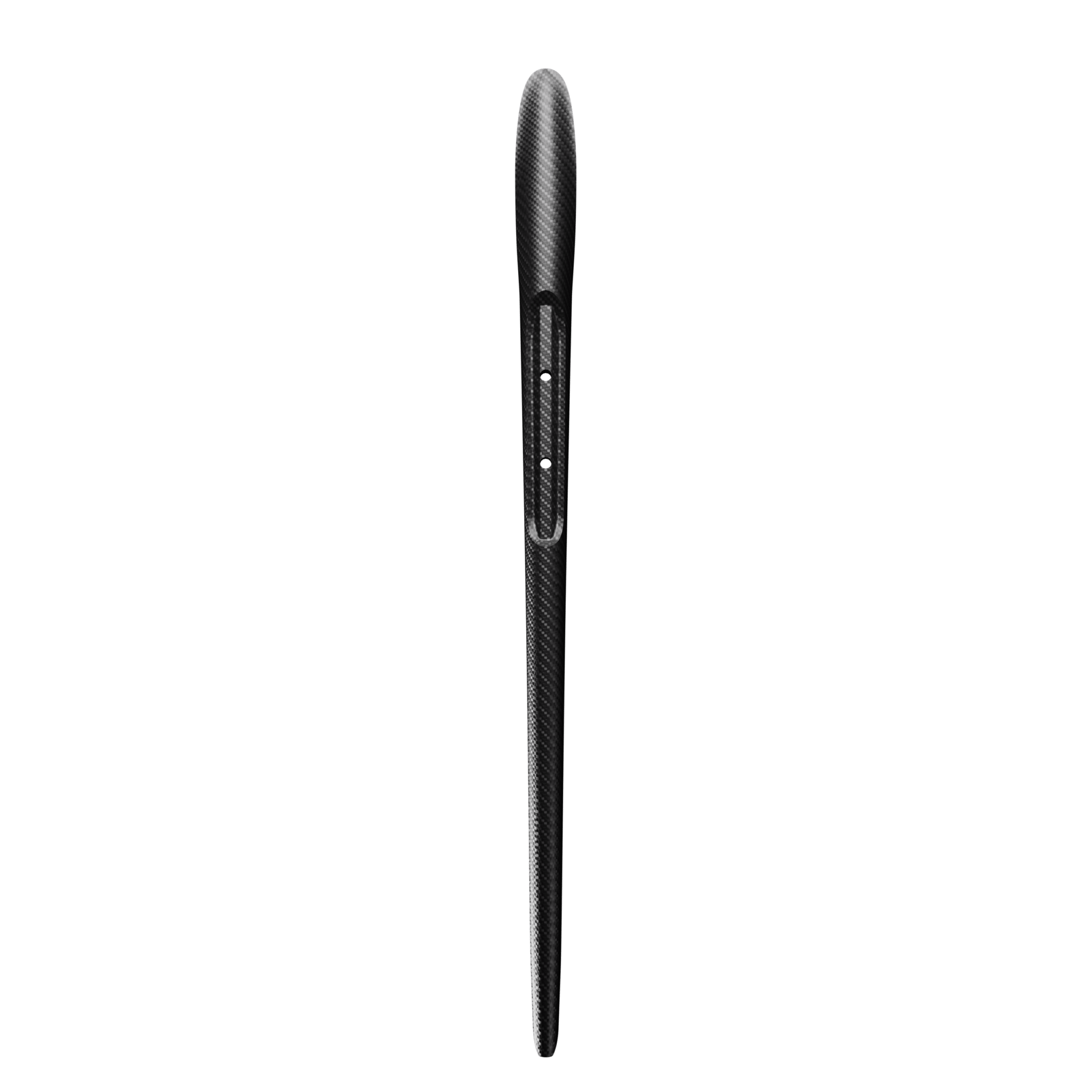

Fuselage — Fuselink FuselageSee the product
 Standard | |
|---|---|
| Length (mm) | 680 |
| Weight (g) | 560 |
| Construction | HR Carbon / Monolithic |
- Length (mm)
- 680
- Weight (g)
- 560
- Construction
- HR Carbon / Monolithic
Stabilizer — U-Cruise StabilizerSee the product
 245 | |
|---|---|
| Area (cm²) | 250 |
| Wingspan (mm) | 450 |
| Aspect ratio | 8 |
| Max chord (mm) | 75 |
| Max thickness (mm) | 7.35 |
| Screw size | 12mm Torx 30 |
| Weight (g) | 200 |
| Construction | HR Carbon / Monolithic |
- Area (cm²)
- 250
- Wingspan (mm)
- 450
- Aspect ratio
- 8
- Max chord (mm)
- 75
- Max thickness (mm)
- 7.35
- Screw size
- 12mm Torx 30
- Weight (g)
- 200
- Construction
- HR Carbon / Monolithic
Flyer Full Set
- Until Nov. 6 : AFS poncho + cap offered
- Warranty : All our products come with a 2-year warranty.
- After-sales service : Returns within 14 days
AFS Product Expert
Need help choosing your equipment?
We are here to provide you with comprehensive answers and advice to help you make the right choice.
Make an appointment by telephone
Need advice?
An AFS expert helps you pick the right size and setup.
Quick replies, Monday to Friday.
These setups are our recommendations. Have another combination in mind? Build your foil piece by piece, at the same price:
- Front wing : Flyer Front Wing
- Mast : HR carbon mast
- Fuselage : Fuselink Fuselage
- Stabilizer : U-Cruise Stabilizer
In the box
11 items- 1 Flyer Full SetThe size you choose above.
- 1 Wing coverProtects the leading edge in transport and storage.
- 1 Mast coverProtects the profile in transport.
- 1 Fuselage coverProtects the fuselage in transit.
- 1 Stabilizer coverProtects the stabilizer in transit.
- 1 Travel caseThe whole foil fits inside, wings protected.
- 4 Mounting screws · front wing — M8×20 stainless, Torx 40Ready to fit.
- 1 Baseplate connection kit · 4 × M8×30 screws + 4 × M8 nutsAttaches the mast to the board’s baseplate.
- 3 Mast / fuselage screws · M8×45Attach the fuselage to the mast.
- 3 Mounting screws · stabilizer — M6×12Ready to fit.
- 1 Assembly screwdriverTo assemble the foil.
